Product Details:
Payment & Shipping Terms:
|
| Material: | Rubber, Glass Fiber, Viscose Fiber, Etc Etc | Free Samples: | Yes |
|---|---|---|---|
| Wear Resistance: | Excellent | Colors: | Black, Gray, Reddish, Light Green, Etc |
| OEM: | Yes | Width: | ≤600mm |
| Thickness: | 3-35mm | FOB Port: | Shanghai, Ningbo |
| High Light: | brake shoe lining material,brake lining material,molded rubber based brake lining |
||

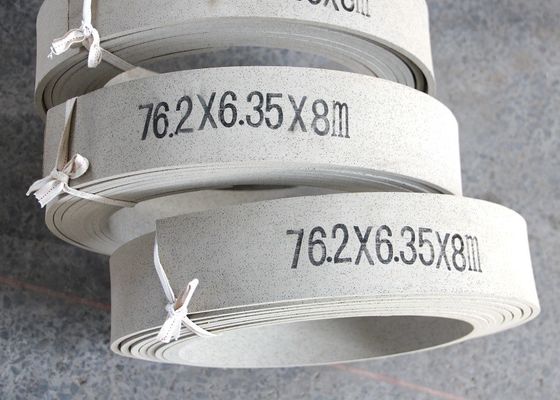

Molded Rubber Based Brake Lining Roll Flexible Mouleded Brake Liner in Roll
Quality Performance:
|
Interface Temperature
|
Friction coefficient |
Wear rate(CM3/NM) |
|
100°C |
0.40—0.65 |
≤0.7×10-7 |
|
150°C |
0.35—0.65 |
≤1.1×10-7 |
|
200°C |
0.30—0.60 |
≤1.3×10-7 |
Extensive Usage:
Brake Lining Rolls are widely used in decelerating and braking of engineer machines, industry machines and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane, Oil Well Drilling, Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc Its coefficient of friction has a high capacity to absorb loads by impact and excellent resistance to mechanical stress.
Product Advantages:
1. Good flexibility,
2. Excellent oil resistance and water resistance,
3. High tenacity, shock resisting, heat resisting,
4. Good duality and anastomosis, agile brake.
1. Free Samples
Free samples within 1-10 KGs are availble, but the delivery fee should be paid by your side.
2. Certificates
We can supply Quality Certificates, Test Report, Certificate of Original (Form A, Form E, etc.), SGS test, etc.
3. Strict Quality Control
Our strictly Quality Control department will inspect each batch of goods before loading, only after the goods qualified, it can be allowed to out of the factory.
4. Professional Document Service
After shipped, our professional documents department will serve you all the documents for you timely.
Dispatching and Packing:
