Product Details:
Payment & Shipping Terms:
|
Material: | Brass Wire, Viscose Fiber, Glass Fiber, Resin,etc | Free Samples: | Yes |
---|---|---|---|
OEM: | Yes | Oil Resistance: | Excellent |
Water Resistance: | Excellent | Width: | ≤600mm |
Thickness: | 4-35mm | Length: | 5m, 8m, 10m, 15m, 20m |
High Light: | brake friction material,friction plate material |
Resin Woven Friction Material Sheet for Industrial Machinery Friction Lining Roll
Material: Asbestos/Non Asbestos
Thickness: 5mm to 35 mm
Width: upto 550 mm
Product Introduction:

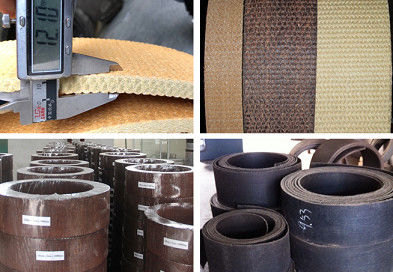

Friction Material Sheet in Rolls are made of friction material, brass wire, yarns and resin. It's applicable to industrial machinery that requires a high degree of friction, can be used in tractors, oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, motorcycles and among many other applications. Its coefficient of friction has a high capacity to absorb loads by impact and excellent resistance to mechanical stress.
Technical Charicteristics:
Interface Temperature
|
Friction coefficient |
Wear rate(CM3/NM) |
100°C |
0.40—0.65 |
≤0.7×10-7 |
150°C |
0.35—0.65 |
≤1.1×10-7 |
200°C |
0.30—0.60 |
≤1.3×10-7 |
Packing & delivery:
Contact Person: David
Tel: +8613523485569
