Product Details:
Payment & Shipping Terms:
|
| Oil Resistance: | Excellent | Sizes: | Customised |
|---|---|---|---|
| Holes: | Available | Free Samples: | Yes |
| Applications: | Drilling Machines, Engineer Machines, Industrial Machines | OEM: | Available |
| High Light: | Drilling Machine Woven Brake Block,Asbestos Free Woven Brake Block |
||

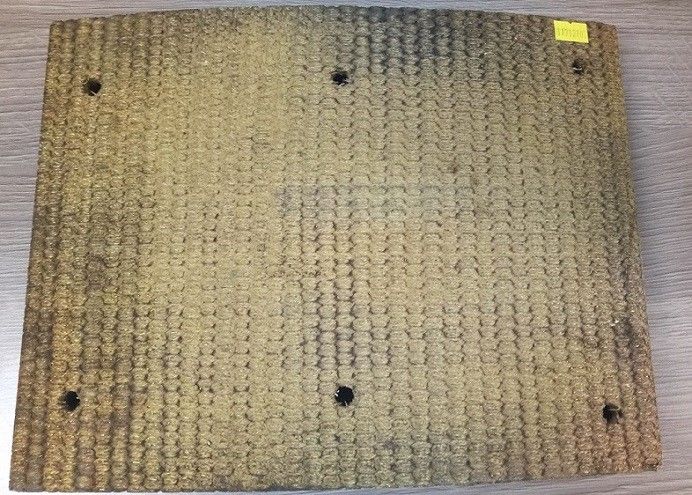

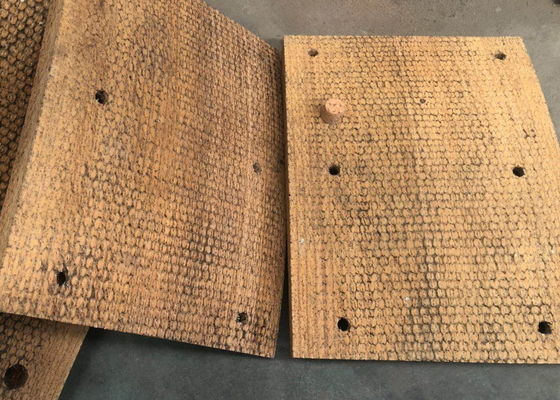

ASBESTOS FREE WOVEN BRAKE BLOCKS BRAKE LINING FOR DRILLING MACHINE BRASS INSIDE
Woven Blocks are widely used in decelerating and braking of mining machines, engineer machines, industry machines...Our company produces Woven Brake Blocks in rolls or in small pieces as per customers' need. Holes are made as per customers' request. It's applied to decelerating and braking of engineer machines, industry machine and mining machines, such as Oil Well Drilling Machines, Tractors, Winch, Windlass, Motorcycles, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, Pile Driver.
|
Wear Performance of Woven Brake Block |
||
| Temperature | Coefficient of Friction | Wear Rate(Cm3/N.m) |
| 100°C | 0.40-0.65 | ≤0.3×10-7 |
| 150°C | 0.35-0.65 | ≤0.5×10-7 |
| 200°C | 0.30-0.60 | ≤0.7×10-7 |
Width: ＜500 mm
Thickness: 4mm to 35 mm
Length: Customised
Colors: Gray, Black, Brown, Reddish, etc
Materials: Resin, Brass Wire, Viscose Fiber, Glass Fiber, Yarns, etc
Applications: Mining machines, engineer machines, industrial machines...
Packing:
We offer free samples and OEM services to customers, we welcome friends from all over the world.
