Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll

I'm Online Chat Now
As your customer, I’m looking forward to our long-term cooperative relation between us. I sincerely hope we could have more exchanges which would be able to expand our bilateral trade relations.

—— Steve

We greatly appreciate your timely help to deal with some shipping issue of last order. Your brake lining is very good, we will have more chances to cooperate as friends.

—— Carlos

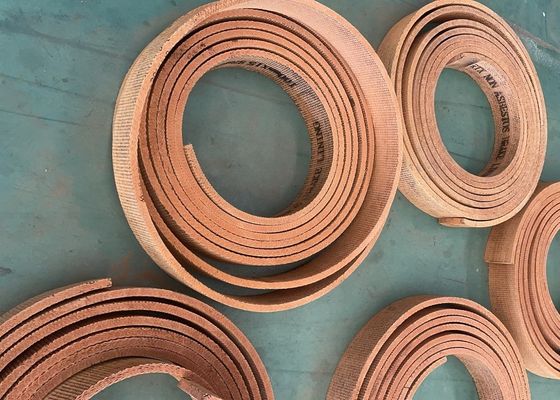

Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll

Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll
Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll

Large Image :  Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll Get Best Price

Product Details:
Place of Origin: Henan
Brand Name: KBN
Certification: ISO
Model Number: KBN-418
Payment & Shipping Terms:
Minimum Order Quantity: 500 Kgs
Price: Negotiable
Packaging Details: Polywoven Bag or Plywood Case
Delivery Time: 10 work days
Payment Terms: T/T, L/C
Supply Ability: 800 tons per month
Detailed Product Description
Free Samples: Yes Color: Brown, Redish, Yellow, Gray, Etc
OEM: Yes Width: ≤600mm
Thickness: 4-35mm Length: 5m, 8m, 10m, 15m, Etc

Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll


Materials:

Brass wire, glass fiber, viscose fiber, resin and friction materials, etc. Its coefficient of friction has a high capacity to absorb loads by impact and excellent resistance to mechanical stress.



Extensive applications :



Brake Lining Rolls are widely used in decelerating and braking of engineer machines, industry machines and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane, Oil Well Drilling, Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc.



Wear Performance:





Interface Temperature





Friction coefficient



Wear rate(CM3/NM)



100°C



0.40—0.65



≤0.7×10-7



150°C



0.35—0.65



≤1.1×10-7



200°C



0.30—0.60



≤1.3×10-7





This product is made of woven material with brass wire, resin glass fiber, and viscose fiber, is applicable to industrial machinery that requires a high degree of friction, can be used in oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, among many other applications.

We have more than 10 years experience in manufacturing Brake Lining Rolls, which can bring mutual benefit and profits to you and us.



Our services:



1. Free Samples

Free samples within 1-10 KGs are availble, but the delivery fee should be paid by your side.

2. Certificates

We can supply Quality Certificates, Test Report, Certificate of Original (Form A, Form E, etc.), SGS test, etc.

3. Strict Quality Control

Our strictly Quality Control department will inspect each batch of goods before loading, only after the goods qualified, it can be allowed to out of the factory.

4. Professional Document Service

After shipped, our professional documents department will serve you all the documents for you timely.

Q: Can I visit your factory?
A: You are warmly welcomed to visit our factory, and we offer free hotel and free car service.



Features:



1. Good flexibility,

2. Excellent oil resistance and water resistance,

3. High tenacity, shock resisting, heat resisting,

4. Good duality and anastomosis, agile brake.



Packing and delivery:

Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll 0

Non Asbestos Resin Woven Brake Lining in Rolls For Marine Winch Brake Lining Roll 1
