Product Details:
Payment & Shipping Terms:
|
| Width: | ≤500mm | Thickness: | 4-35mm |
|---|---|---|---|
| Uses: | Tractor, Winch, Windlass, Sugar Mill, Lift, Crane,Blender, Power Generator, Construction Machinery, Etc | Material: | Brass Wire, Viscose Fiber, Glass Fiber, Resin, Etc |
| OEM: | Yes | Free Sample: | Available |
| Oil Resistance: | Excellent | Feature: | No-asbestos |

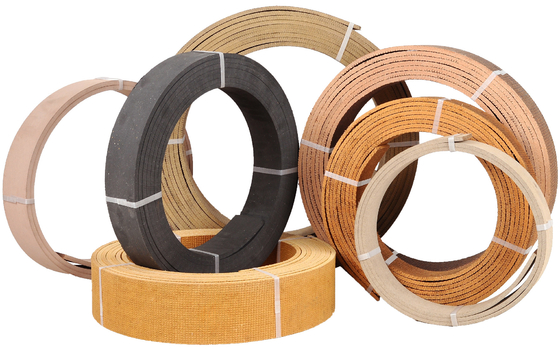

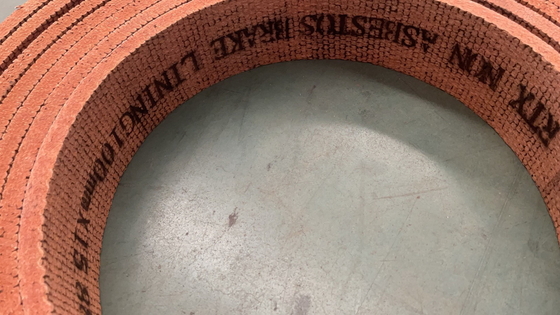

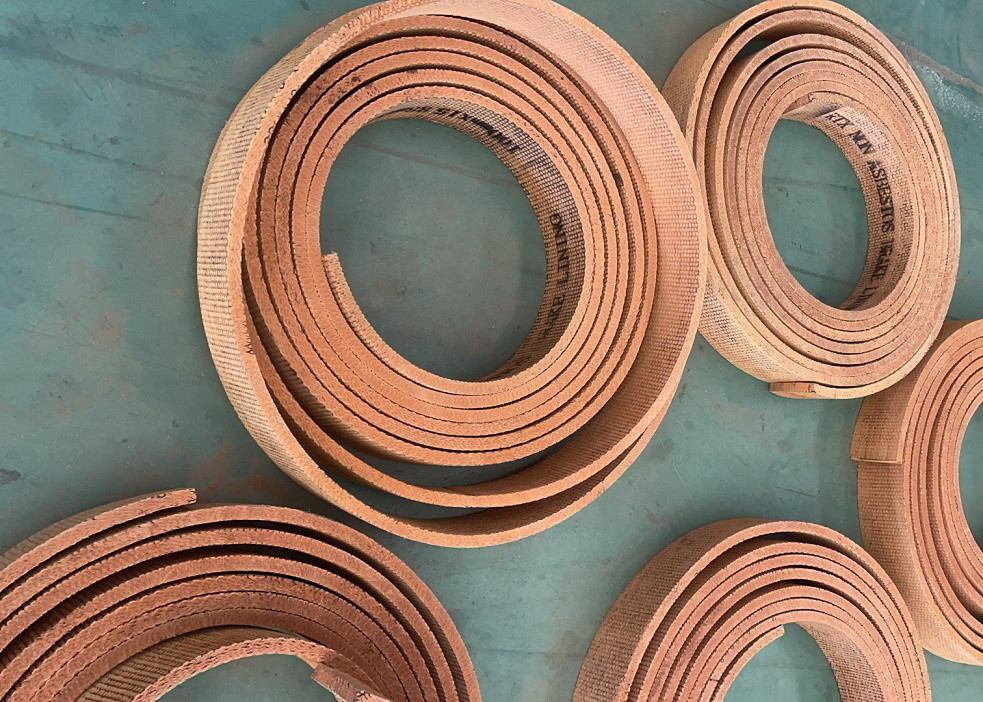

Tejida Frenos En Rollos Friction Roll Asbestos Free Winch Woven Brake Lining
Normal Sizes:
Thickness:4mm-35mm
Width:50mm-500mm
Length: 10m,15m,20m
Raw Material: brass wire, resin, glass fiber, viscose fiber and other friction materials, etc
Wide Application Fields:
Woven Brake Lining is widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc. We can manufacture the flexibility, hardness, width, thickness length and material as per your request.
Technical specifications:
|
Interface Temperature
|
Friction coefficient |
Wear rate(CM3/NM) |
|
100°C |
0.40—0.65 |
≤0.7×10-7 |
|
150°C |
0.35—0.65 |
≤1.1×10-7 |
|
200°C |
0.30—0.60 |
≤1.3×10-7 |
Packing & shipment:
We have more than 10 years experience in manufacturing Woven Brake Linings, which can bring mutual benefit and profits to you and us.
Normal questions:
Q: Can you offer sample to test?
A: Yes, we can offer free sample, customer only need to pay the shipping charge.
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: Can you make different colors?
A: Yes. We can customize over various colors.
Q: What's your acceptable payment term?
A: Our usual payment term is L/C, T/T, Western Union.
Q: Can I visit your factory?
A: You are warmly welcomed to visit our factory, and we offer free hotel and free car service.
