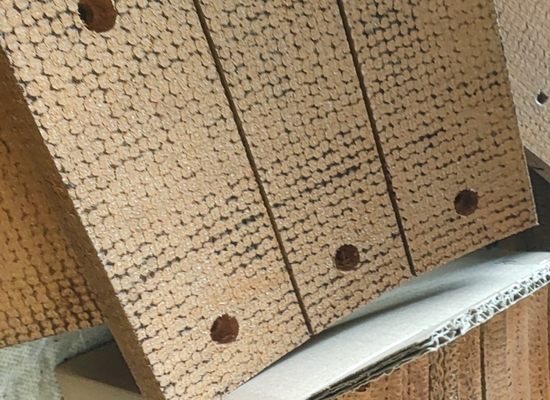

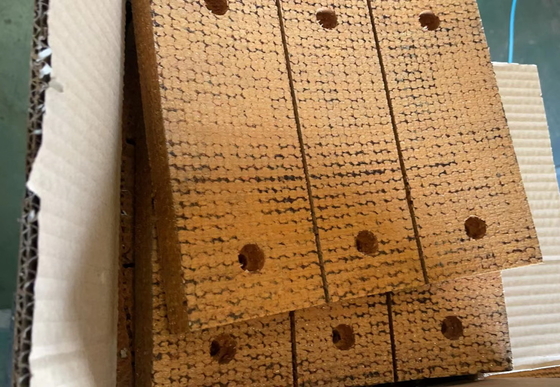

Drilling Rig Brake Blocks Resin Woven Brake Block Material for Pile Driver Brakes
We are a professional manufacturer and exporter of Asbestos and Non Asbestos Woven Brake Blocks reinforced with brass wire inside. Woven Blocks are widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Oil Well Drilling Machines, Tractors, Winch, Windlass, Motorcycles, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc. Our company can manufacture the flexibility, hardness, width, thickness length and material as per your requirement.
Our Woven Brake Block is made of friction material,copper wires/brass wires, resin, yarns, and other friction materials. It's applicable to industrial machinery that requires a high degree of friction.
Technical Data:
|
Interface Temperature
|
Friction coefficient
|
Wear rate(CM3/NM)
|
|
100°C
|
0.40—0.65
|
≤0.7×10-7
|
|
150°C
|
0.35—0.65
|
≤1.1×10-7
|
|
200°C
|
0.30—0.60
|
≤1.3×10-7
|
Best services:
1. Samples: Free samples within 1-10 KGs is available, but the delivery fee should be paid by your side.
2. Document Service: After shipped, our professional document department will serve you all the documents for you timely.
3. Quality Control: Our strict Quality Control Department will inspect each batch of goods before loading, only after the goods qualified, it can be allowed to out of the factory.
4. Certificates: We can supply Quality Certificate, Test Report, Certificate of Original (CO, Form A, Form E, etc.), SGS test, etc.
Packing:
