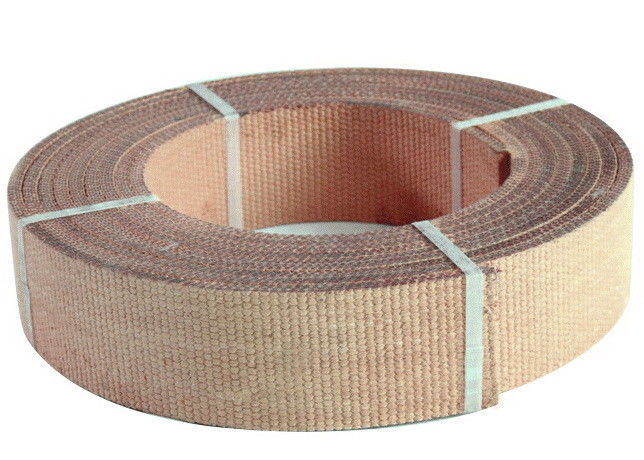

Woven Lining Automotive Brake Shoe Lining Material With Excellent Oil Resistance

Woven Lining Automotive Brake Shoe Lining Material With Excellent Oil Resistance
Woven Lining Automotive Brake Shoe Lining Material With Excellent Oil Resistance

Large Image :  Woven Lining Automotive Brake Shoe Lining Material With Excellent Oil Resistance

Product Details:
Place of Origin: Henan
Brand Name: KBN
Certification: ISO
Model Number: KBN-18
Payment & Shipping Terms:
Minimum Order Quantity: 800 Kgs
Price: Negotiable
Packaging Details: Polywoven Bag or Plywood Case
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 900 tons per month
Detailed Product Description
Width: ≤600mm Thickness: 4-35mm
Free Samples: Yes OEM: Yes
FOB Port: Shanghai, Qingdao Applications: Tractor, Winch, Windlass, Sugar Mill, Lift, Crane,Blender, Power Generator, Construction Machinery, Etc
High Light:

woven brake lining material

,

non asbestos woven brake lining

,

Oil Resistance Woven Brake Lining

Non Asbestos Woven Brake Lining Roll for Anchor Windlass Winch Capstan Sugar Mill



Features:



Good flexibility, high tenacity, shock resisting, heat resisting, good duality and anastomosis, agile brake, excellent oil resistance and water resistance, etc.



This product is made of woven material with brass wire, resin glass fiber, and viscose fiber, is applicable to industrial machinery that requires a high degree of friction, can be used in oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, among many other applications.



Its coefficient of friction has a high capacity to absorb loads by impact and excellent resistance to mechanical stress.



Material: brass wire, glass fiber, viscose fiber and resin, etc



Applications: It's widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc. We can manufacture the flexibility, hardness, width, thickness length and material as per your request.



Wear Performance:





Interface Temperature





Friction coefficient



Wear rate(CM3/NM)



100°C



0.40—0.65



≤0.7×10-7



150°C



0.35—0.65



≤1.1×10-7



200°C



0.30—0.60



≤1.3×10-7





Packing and shipping:

Woven Lining Automotive Brake Shoe Lining Material With Excellent Oil Resistance 0



Our services:



1. Free Samples

Free samples within 1-10 KGs are availble, but the delivery fee should be paid by your side.

2. Certificates

We can supply Quality Certificates, Test Report, Place of Original (Form A, Form E, etc.), SGS test, etc.

3. Strict Quality Control

Our strictly Quality Control department will inspect each batch of goods before loading, only after the goods qualified, it can be allowed to out of the factory.

4. Professional Document Service

After shipped, our professional documents department will serve you all the documents for you timely.



FAQ:



Q: Are you trading company or manufacturer?
A: We are manufacturer.



Q: Can you make different colors?
A: Yes. We can customize over 1000 kinds of colors, plz refer to our color card to pick up which is your favorite.



Q: Can you offer sample to test?

A: Yes, we can offer free sample, customer only need to pay the shipping charge.



Q: What's your acceptable payment term?
A: Our usual payment term is L/C, T/T, Western Union.



Q: Can I visit your factory?
A: You are warmly welcomed to visit our factory, and we offer free hotel and free car service.
